Chevrolet Corvette C5 / Camaro Z28 / SS, Pontiac Firebird Formula / Trans Am & GTO LS1 Billet Aluminium Throttle Cable Bracket Kit for 102mm Aftermarket Intake Manifolds (1997 - 2004)

Complete your LS1 102mm aftermarket intake manifold installation with this premium billet aluminium throttle cable bracket kit, precision CNC-machined from aircraft-grade 6061-T6 aluminium for permanent durability and proper throttle cable routing. When installing a 102mm aftermarket intake manifold (FAST 102, Holley HiRam, MSD Atomic, TSP, BTR, or similar) on your LS1-powered Corvette, Camaro, Firebird, or GTO, the factory throttle cable bracket no longer aligns with the new intake manifold geometry — leaving the throttle cable improperly routed, potentially binding, and unable to mount cleanly. This bracket kit solves the problem with purpose-built throttle cable mounting that aligns properly with 102mm sheet metal intake manifolds, providing both standard throttle body and inverted (upside-down) throttle body mounting options for maximum hood clearance flexibility. Aircraft-grade billet aluminium construction delivers permanent durability while keeping weight low for serious LS performance builds.

Features:

• Premium 6061-T6 aircraft-grade billet aluminium construction – delivers exceptional strength while keeping weight low

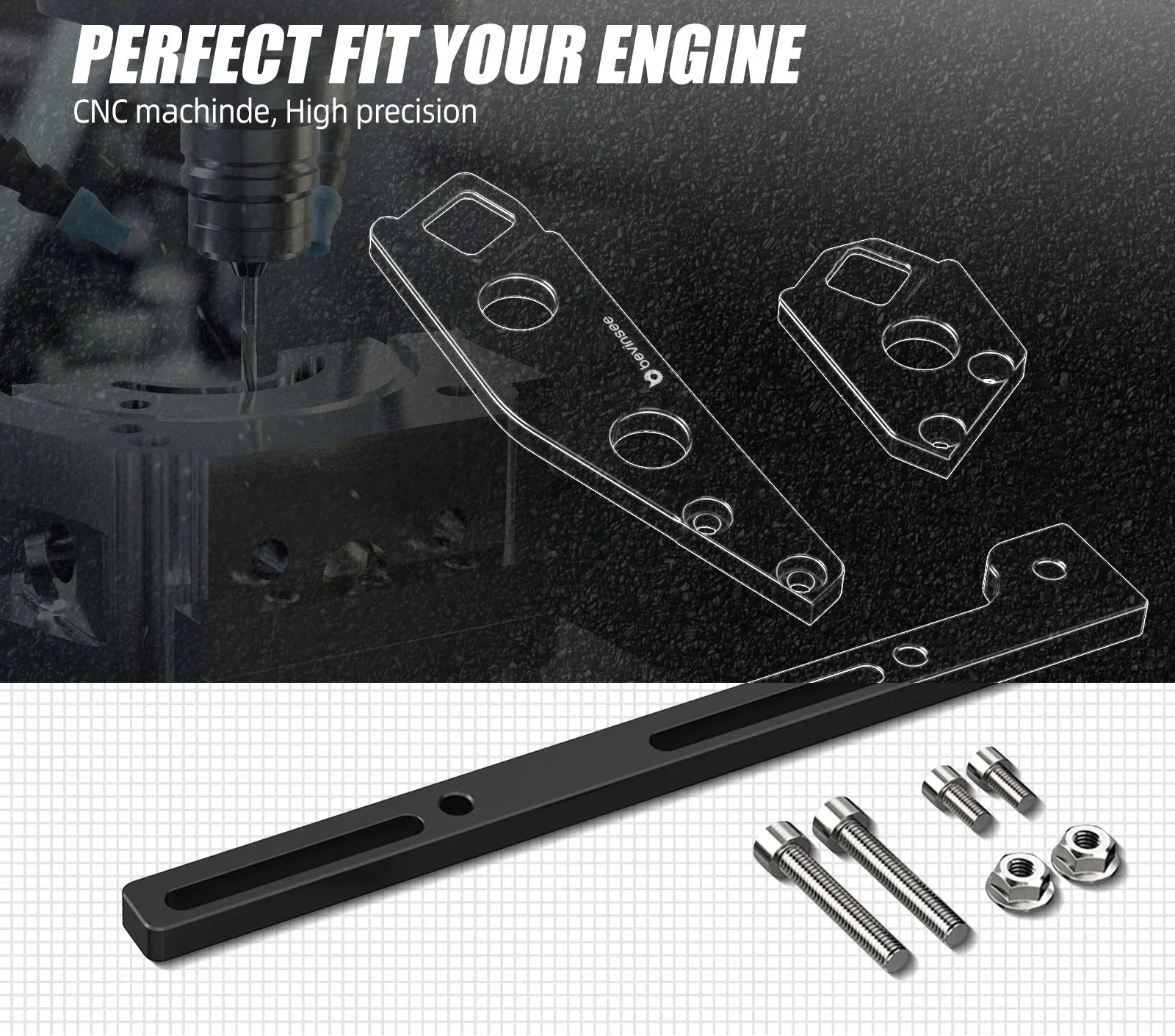

• CNC machined precision – ensures perfect fit to 102mm aftermarket intake manifold geometry
• Compatible with all 102mm sheet metal intake manifolds – fits FAST 102, Holley HiRam, MSD Atomic, TSP, BTR, and similar aftermarket intakes
• Dual throttle cable bracket configuration – includes brackets for both standard and inverted throttle body orientations
• Inverted throttle body support – provides additional hood clearance when needed for aggressive intake manifold installations

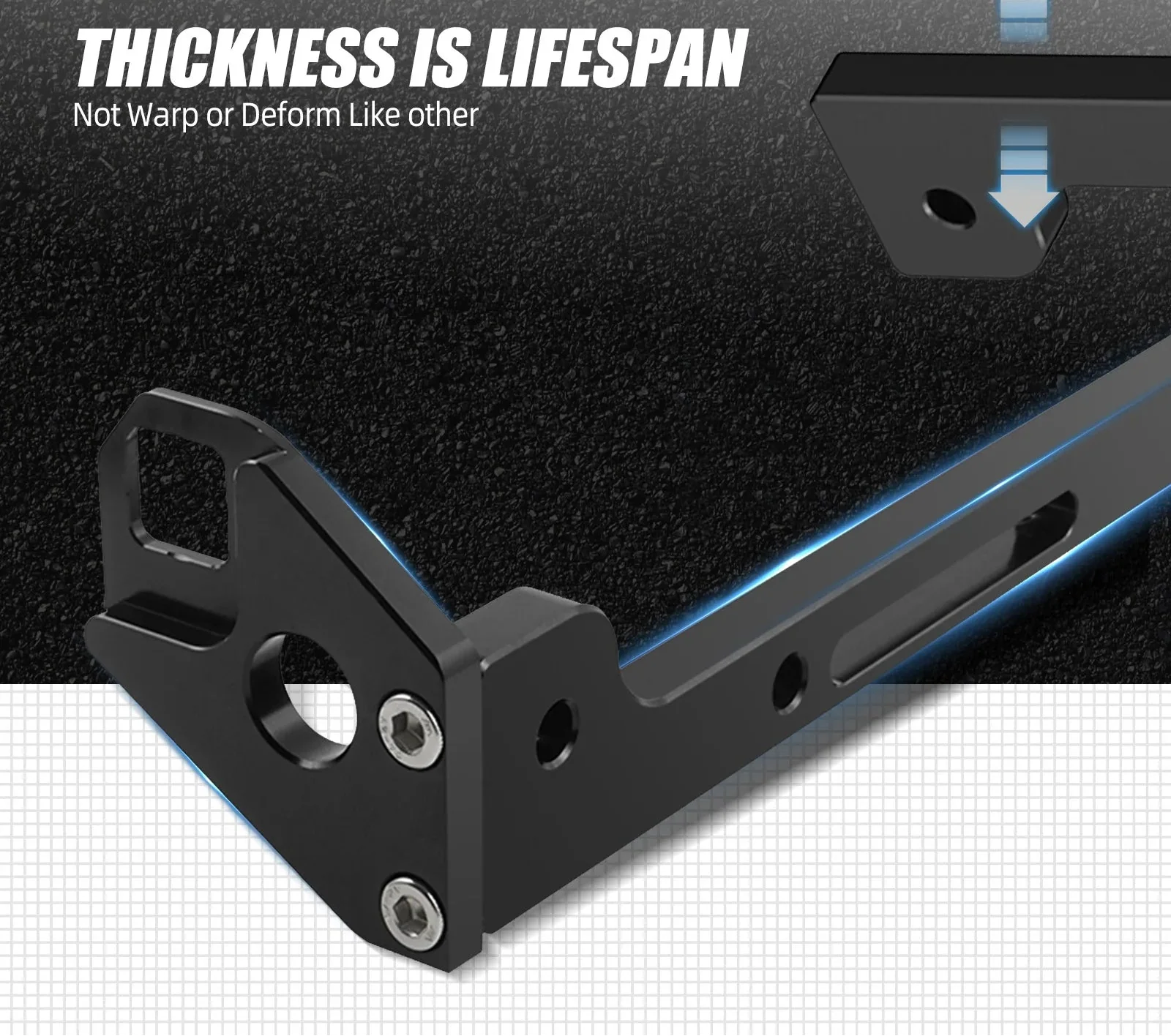

• Thickened bracket construction – delivers superior rigidity compared to thinner aftermarket alternatives
• Anodized surface finish – delivers corrosion resistance and a clean professional aesthetic for long-term engine bay durability
• Complete kit – includes support bracket, dual throttle cable brackets, and all required mounting hardware

Specifications:

• Condition: 100% Brand New
• Type: LS1 Throttle Cable Bracket Kit (102mm Intake Compatible)
• Material: 6061-T6 Aircraft-Grade Billet Aluminium
• Construction: CNC Machined
• Surface Finish: Anodized
• Item Weight: 0.35 kg
• Quantity: Complete Kit (3 Pieces + Hardware)
• Position: Throttle Cable Mounting / Intake Manifold
• Engine Compatibility: Chevrolet LS1
• Intake Compatibility: 102mm Aftermarket Sheet Metal Intake Manifolds
• Purpose: Performance Build Component / Throttle Cable Routing

Fitment:

• Chevrolet Corvette C5 (1997 – 2004) – Excludes Z06
• Chevrolet Camaro Z28 / SS (1998 – 2002)
• Pontiac Firebird Formula / Trans Am (1998 – 2002)
• Pontiac GTO (2004)
• Compatible with vehicles using 102mm aftermarket sheet metal intake manifolds
• Confirm vehicle model, engine configuration, and intake manifold specification before ordering

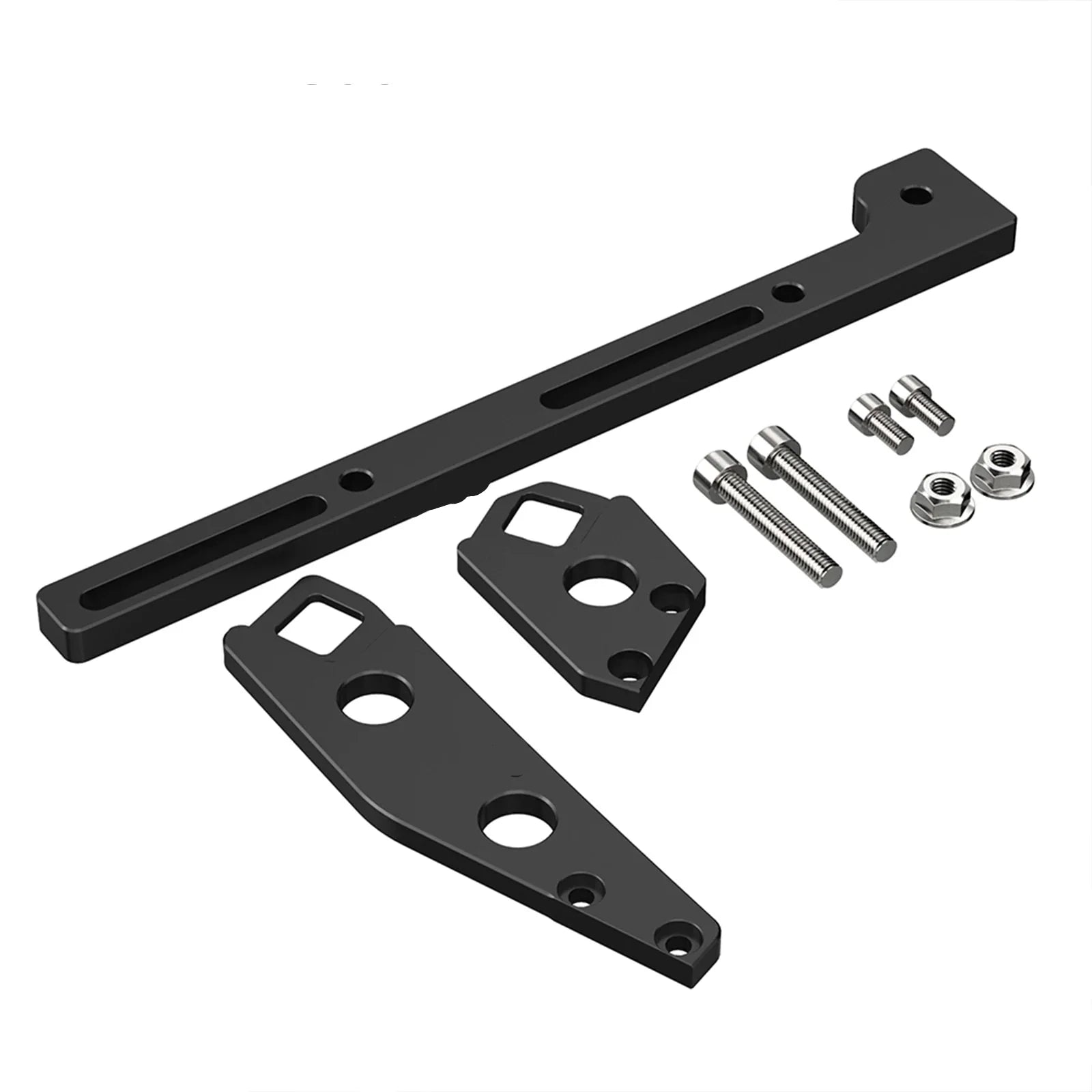

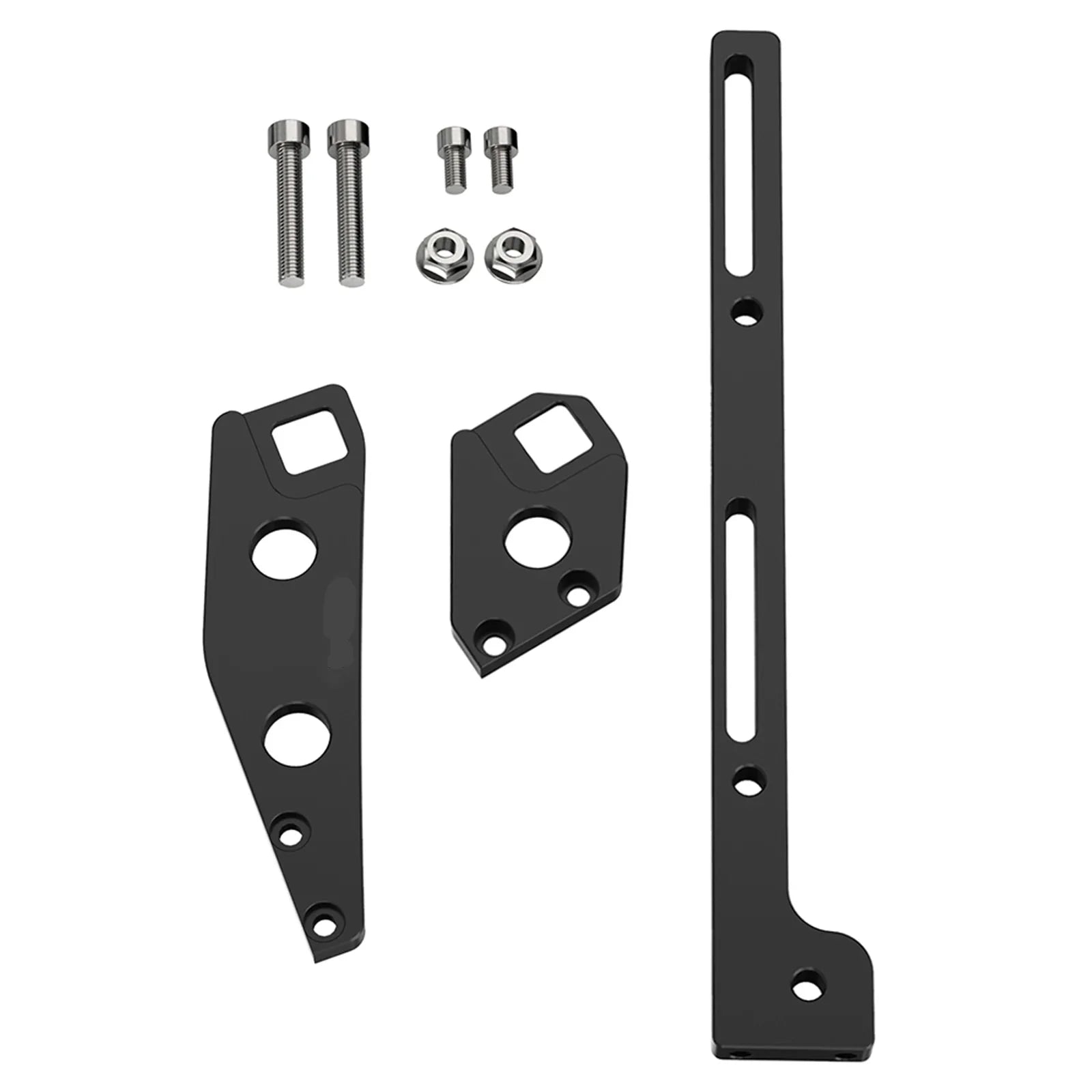

Contents:

• 1x Support Bracket
• 2x Front Throttle Cable Brackets (one for standard throttle body orientation, one for inverted/upside-down placement)

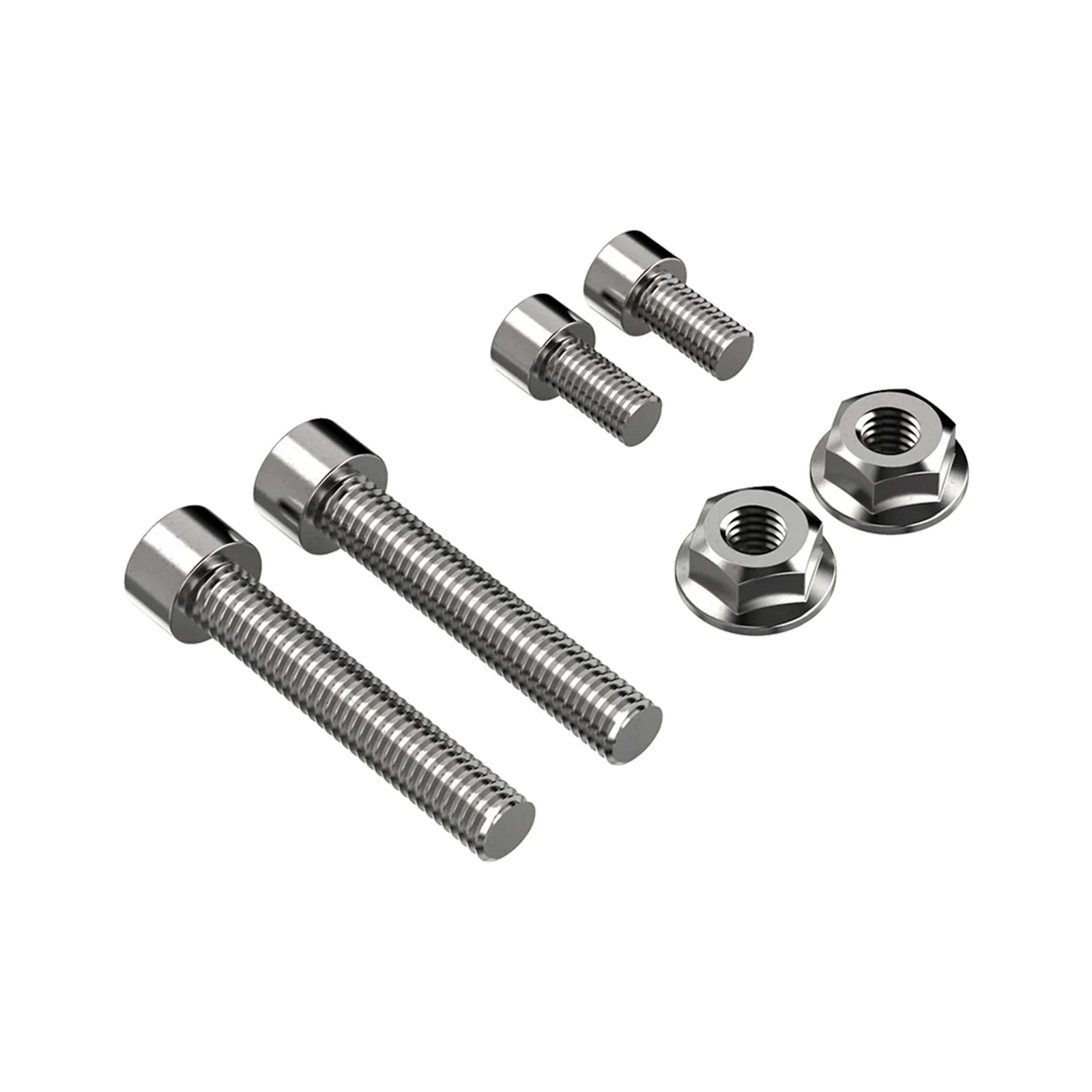

• All required mounting hardware

Benefits:

• Enables clean professional throttle cable routing on 102mm aftermarket intake manifold installations – the most common LS1 performance intake upgrade requires this kind of supporting hardware
• Solves the throttle cable misalignment problem that develops when factory cable brackets no longer fit aftermarket intake manifold geometry
• Inverted throttle body capability provides critical hood clearance options – particularly valuable for aggressive cammed builds, raised intake manifolds, or low-hood applications
• Aircraft-grade 6061-T6 billet aluminium construction permanently outlasts factory or budget aftermarket components
• CNC machined precision ensures perfect fitment without modification – installs cleanly without grinding, drilling, or fabrication
• Anodized finish maintains the premium aluminium appearance over years of engine bay heat exposure
• Significant cost savings compared to fabricating custom brackets – this purpose-built kit eliminates the need for one-off fabrication work
• Foundation product for serious LS1 performance builds – pairs naturally with 102mm intake manifolds, large throttle bodies, and supporting performance components

Installation Notes:

• Intake compatibility verification required: Confirm your aftermarket intake manifold uses 102mm throttle body geometry before ordering – this kit is not compatible with stock LS1 intake manifolds or smaller throttle body configurations
• Throttle body orientation choice: Decide whether you'll install the throttle body in standard or inverted orientation before installation – the kit includes brackets for both configurations, but installation procedure differs
• Allow the engine to fully cool before beginning installation to avoid burns from hot engine components
• Disconnect the negative battery terminal before beginning installation to prevent electrical issues
• Remove the existing throttle body, throttle cable, and any factory cable mounting hardware – inspect for damage during removal
• Install the support bracket to the intake manifold mounting points using included hardware
• Select the appropriate front throttle cable bracket based on your throttle body orientation (standard or inverted)
• Mount the throttle cable bracket to the support bracket and align with the throttle body cable mounting position
• Route the throttle cable through the new bracket configuration – ensure smooth cable travel without binding
• Tighten all mounting hardware to manufacturer-specified torque values using a calibrated torque wrench
• Verify smooth throttle operation through full pedal travel before starting the engine
• Reconnect battery and test throttle response at idle before driving
• Test full RPM range operation at low speeds before aggressive driving
• Inspect bracket and cable mounting periodically for any signs of loosening or wear
• Professional installation strongly recommended unless you have experience with LS engine intake manifold and throttle system modifications
• If unsure about compatibility with your specific LS1 application or intake manifold, contact our team with your year, model, intake manifold specification, and throttle body configuration before ordering

Warranty:

• 12-month standard warranty from date of purchase
• Contact our support team for assistance with any issues
