AUDI/VW 1.9 TDI ADP 1.6L 8V T3 Top Mount Twin Scroll Turbo Manifold

Longitudinal mount (not for transverse engines)

Will FIT 1.9L TDI Diesel engines

Will Fit B5 1.6L engine (Europe)

Will Fit VW B1, B2, Audi 80 with VW inline 4 cyl 8v engines

Audi / VW  EA 827 8v engines

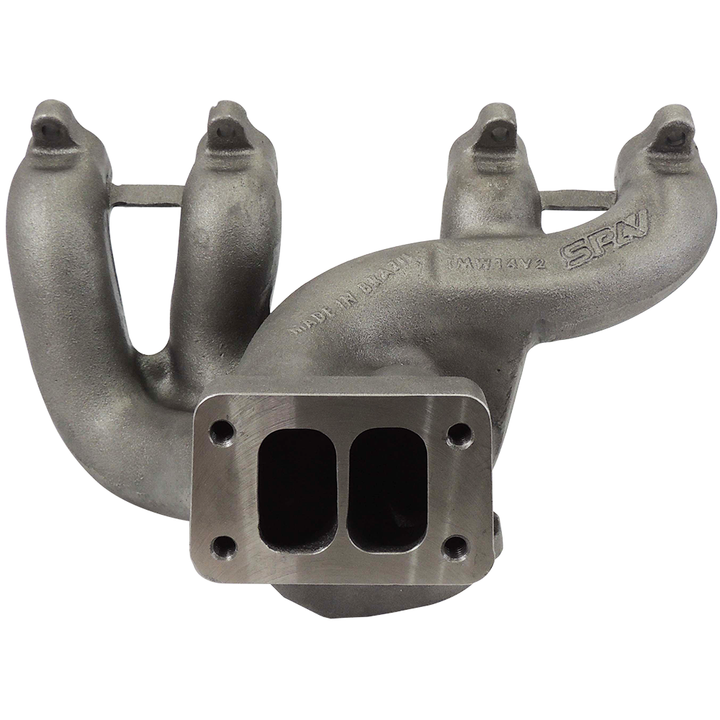

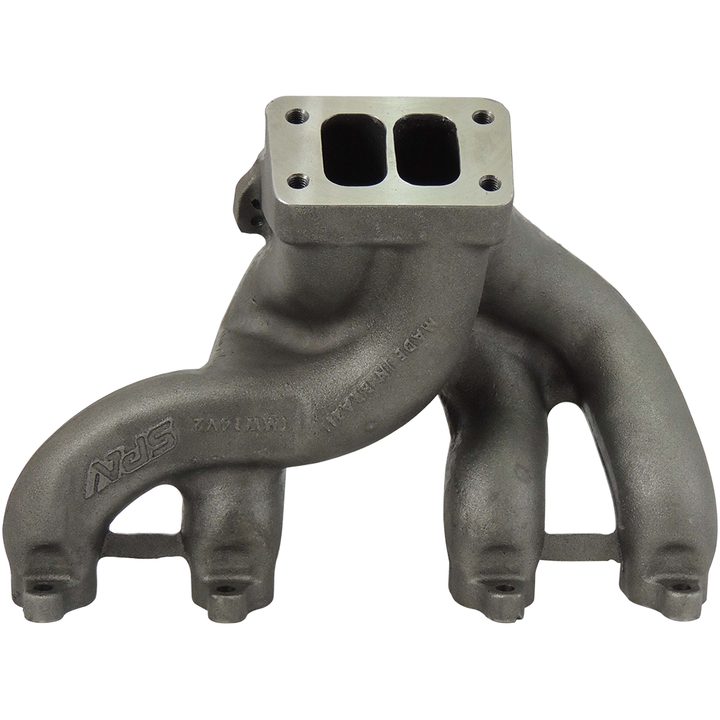

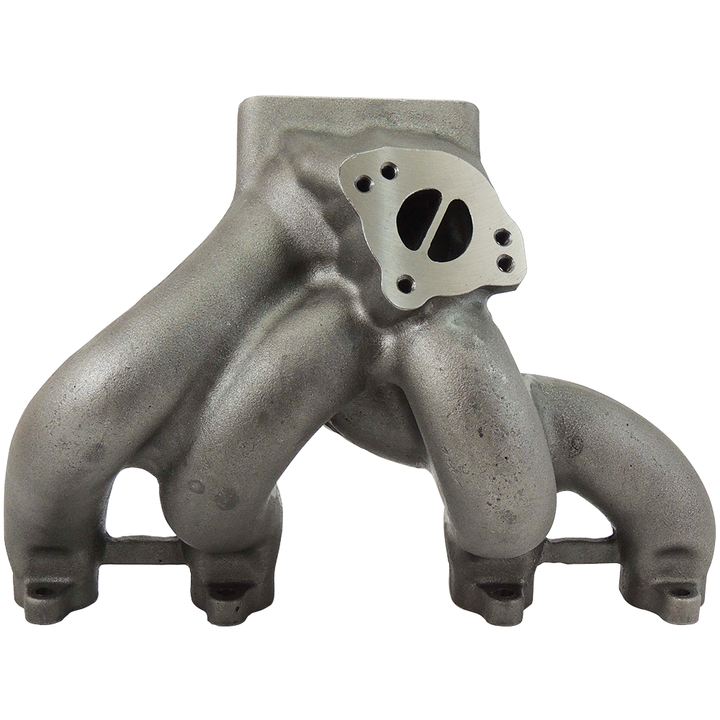

The TMW14 manifold is a GGG40 cast manifold, (ASTM A536 Class 60-40-18, which is equivalent to GGG40 in standard DIN 1693), with a T3 turbocharger Flange; manifold accepts 2 bolt 38mm wastegates.

TMW14 model has large runners, TMW14B has the same specs but with for smaller runners.
