Product Description:

This feature utilizes the High Beam Assist from the vehicle and will dynamically turn off/on individual LEDs to mask oncoming drivers or drivers in front of the vehicle from being blinded. Added bonus…when turning it will throw light around the corner to light up the area ahead. It will adjust the LEDs in different conditions i.e. rain, highway, rural, urban, etc.

https://m.youtube.com/watch?v=k06zrEXoYOY

This feature was currently only available from the factory on European vehicles with the Matrix headlights.

This has been sought after in the US model Audis since release.

Now you can have the function activated on your US model Audis!

Orange Side Marker Deactivation:

Deactivating the orange side markers makes the vehicle and  headlights look much cleaner at night. It will turn off the illuminated orange light on the side of the headlight.

Some light leakage from the Daytime Running Light may occur (depending on vehicle model) causing the orange light to still appear on but it is not.

(Blue Laser Light activation automatically includes this)

Single Sided Parking Light Activation:

In Europe, all cars are equipped with the capability to leave the front and rear parking light turned on, on one side of the car only. This is accomplished by leaving the turn signal switch in the right or left turn position after the ignition has been switched off.

Selecting this additional feature will activate this feature

ECE Improvement (Not for Vehicles with Laser):

Want the Matrix Headlights to perform exactly as if in Europe? This will do that. It will improve upon the Matrix Activation and allow the Matrix to activate at slower speeds, react faster, more widespread low beam pattern and even make the light output greater.

This feature also includes the Orange Side Marker Deactivation.

(Blue Laser Light activation includes this feature).

Blue Laser Light (If Equipped):

When the blue laser light is activated the range of the high beams is extended through the use of the blue marker inside of the headlight.  The standard monochromatic laser is coupled with the activated blue laser beam which creates a wavelength of 450 nanometers.  That is then converted by a phosphor into soft light suitable for roadway use with a color temperature of 5500 kelvin which is ideal for the human eye reducing fatigue.  As an added bonus visible blue accent lighting is activated inside of the headlight AND the orange side marker on the side of the headlight is deactivated.

If equipped with Laser LED Matrix lights, select whether to activate the Blue LED ambient light inside the LED.

(ECE Improvement Included with this activation).

Maneuvering Lighting:

For 2019+ A6, S6, RS6, A7, S7, RS7, A8, S8, Q7, SQ7, Q8, SQ8, RSQ8, E-tron, Q8 E-tron, SQ8 E-tron, E-tron GT models with exterior door handle illumination. This illuminates the door handle lights around the vehicle in reverse for added lighting when it's dark outside.

Highway Light Carpet (If Equipped w/ Digital Matrix):

For E-tron (excl. GT), Q8 E-tron, SQ8 E-tron, post-facelift A8 and S8 owners with Digital Matrix an additional 50 meter long highway carpet functionality is available that also shows the width of the vehicle in hash marks so you can stay in your lane safely. If unsure, contact with VIN prior to ordering and I can confirm.

Requirements:

MLB/MLBevo Audi with Matrix Design, HD Matrix, Laser, Smart Matrix Beam, or Digital Matrix LED Headlights.

Laptop with FlexiHub (Mac, Windows, or Linux) Can be downloaded here:

https://www.flexihub.com/download.html

What this price Includes:

Activation of purchased products

Cables that DO NOT work for this:

Ross-Tech HEX or any other VAGCOM cable

Tactrix Cable

J2534 Passthru Cable

Unitronic Uniconnect+

APR Ultralink

APR Cheetah

034Motorsport R4

COBB Accessport/Accessport Cable

VCP (VAG CAN Professional)

Cables that DO work for this:

E-Net DoIP + Ethernet to USB adapter
VAS5054

VAS6154

Questions about this activation can be found here:

Matrix/DLA FAQs Page

This service can be done remotely or on special occasions in person (please contact prior to purchase if interested in person).

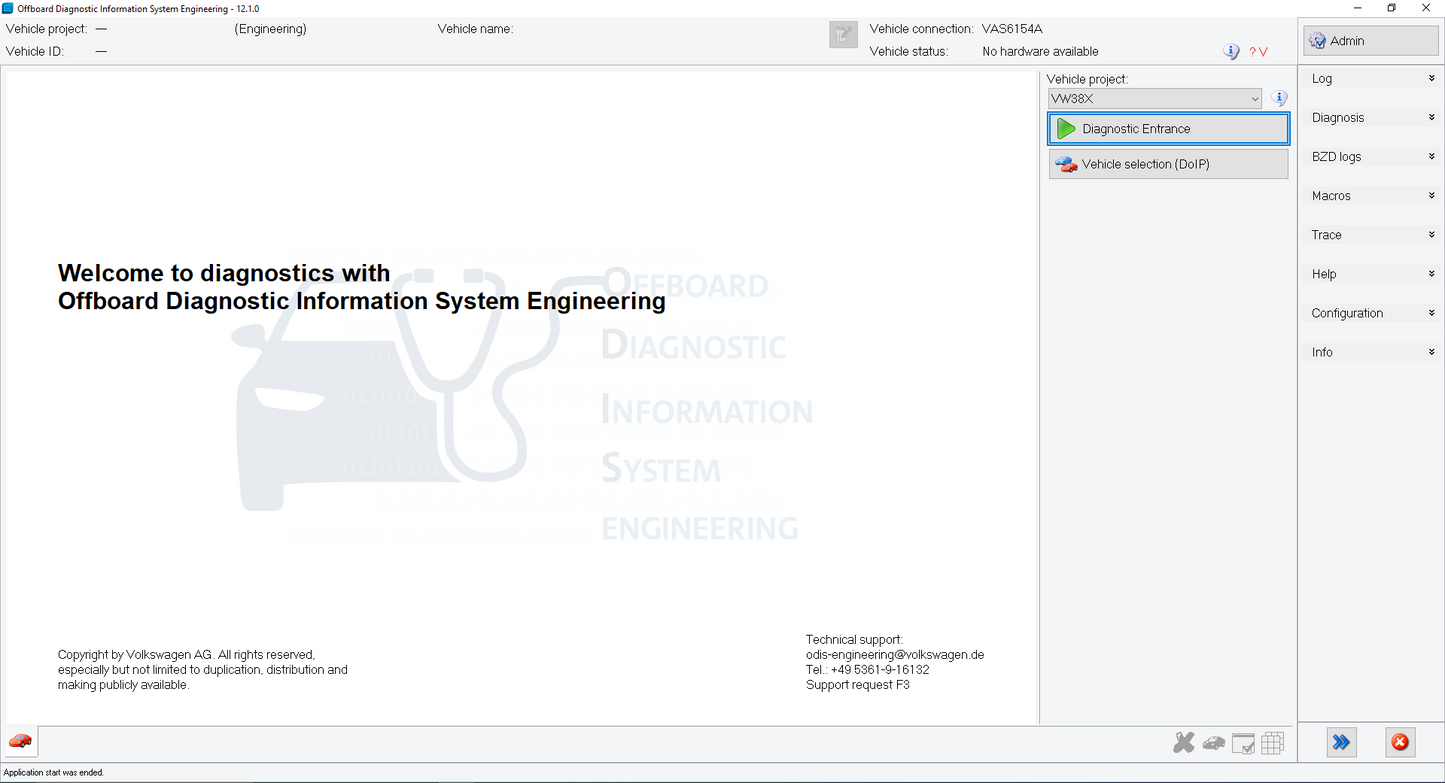

All software used is Genuine Audi.

1.  Computer (Laptop is preferred, but desktop may be used if you can place it near your car for the process)

• Windows: 7, 8, 10, or 11

• MacBook 2019 or newer running MacOS 10.15 or newer. (Only if using standard programming cable. Does not work with VAS6154A)



2.  Remote programming cable - This can be added to your purchase above.

3.  A stable internet connection
