Key Features

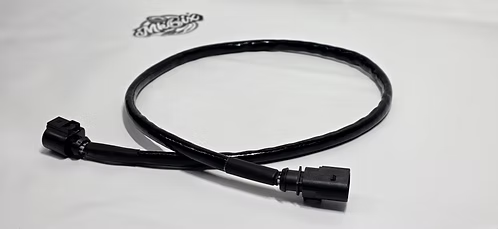

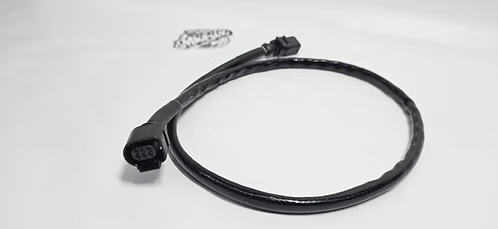

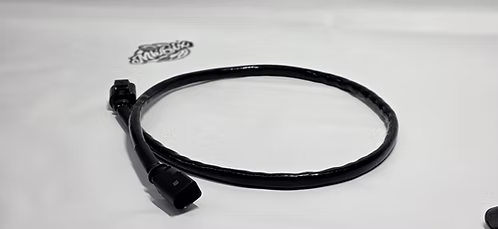

• Three foot wastegate extension for relocated turbo setups
• Fire rated heat tubing for protection in high heat locations
• OEM connectors for a clean and secure fit
• Plug and play, no cutting or modifying the factory wiring
Fitment
• MQB platforms with EA888 Gen 3 and Gen 4 engines
• Compatible with MK7 Golf, GTI, Golf R, and Audi A3, S3, and TT
• Intended for builds where the turbo or wastegate actuator has been repositioned
Why Use This Harness
When a turbo is relocated or sits in a different position than factory, the wastegate connector often cannot reach. This harness provides the additional length needed while keeping the wiring protected from heat and maintaining factory style reliability.
Notes
• Route the harness away from direct heat when possible
• Secure the extension to prevent movement or chafing
Heat Sleeve Specifications
• Temperature range from negative 65°F to positive 500°F (negative 54°C to positive 260°C) for continuous exposure
• Heat resistance up to 2000°F (1093°C) for 15 to 20 minutes
• Peak resistance up to 3000°F (1650°C) for 15 to 30 seconds
• Flammability rated VW 1
• Inner sleeve made of fiberglass
• Outer coating made of silicone
