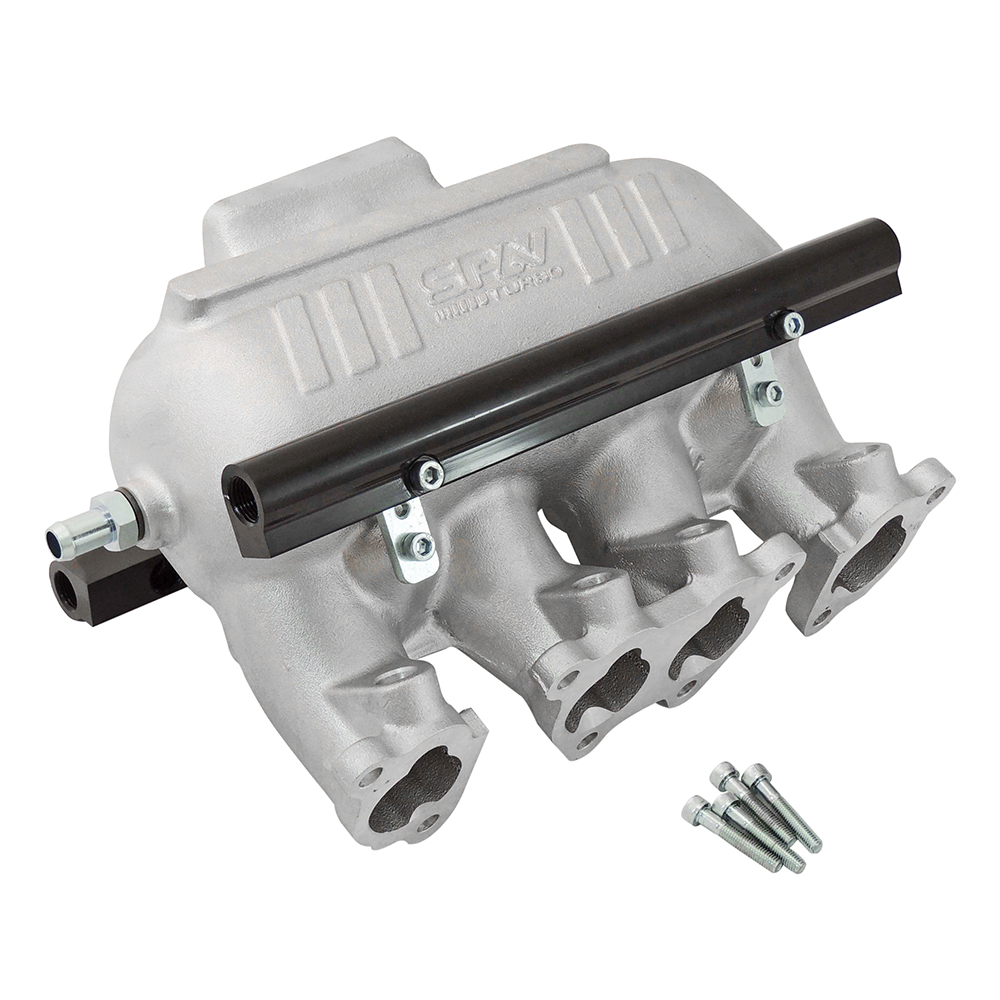

Cast Aluminum Intake Manifold for VW 8V EA827 cross flow Longitudinal - 8 injetors

The SPA Performance intake manifold was designed to increase the flow and volume compared to the original model, and is the perfect solution for those who want performance and durability, guaranteed by the cast aluminum construction (without welds). Available in options for 4 and 8 injectors with fuel rail in anodized billet aluminum and with side throttle body, ideal for use with front mount intercooler.

Number of injectors: 8

Fuel rail: Anodized billet aluminum (black)

Fuel rail connections: 3/8'' NPT

Throttle body: 60x83mm M8 bolt holes, (up to 70mm).

TBI position: side (ideal for use with front mount intercooler)

Max working capacity: 10bar (145psi)

Material: Cast aluminum

Application: VW 8V engine equipped with cross-flow cylinder head (longitudinal mounting). Does not fit Golf and other models with transverse engines.

ATTENTION: as this is an adaptation, it may be necessary to make changes to the position of the alternator and/or brake master cylinder.
